Accumulators

No matter the need, our accumulator options are diverse and effective!

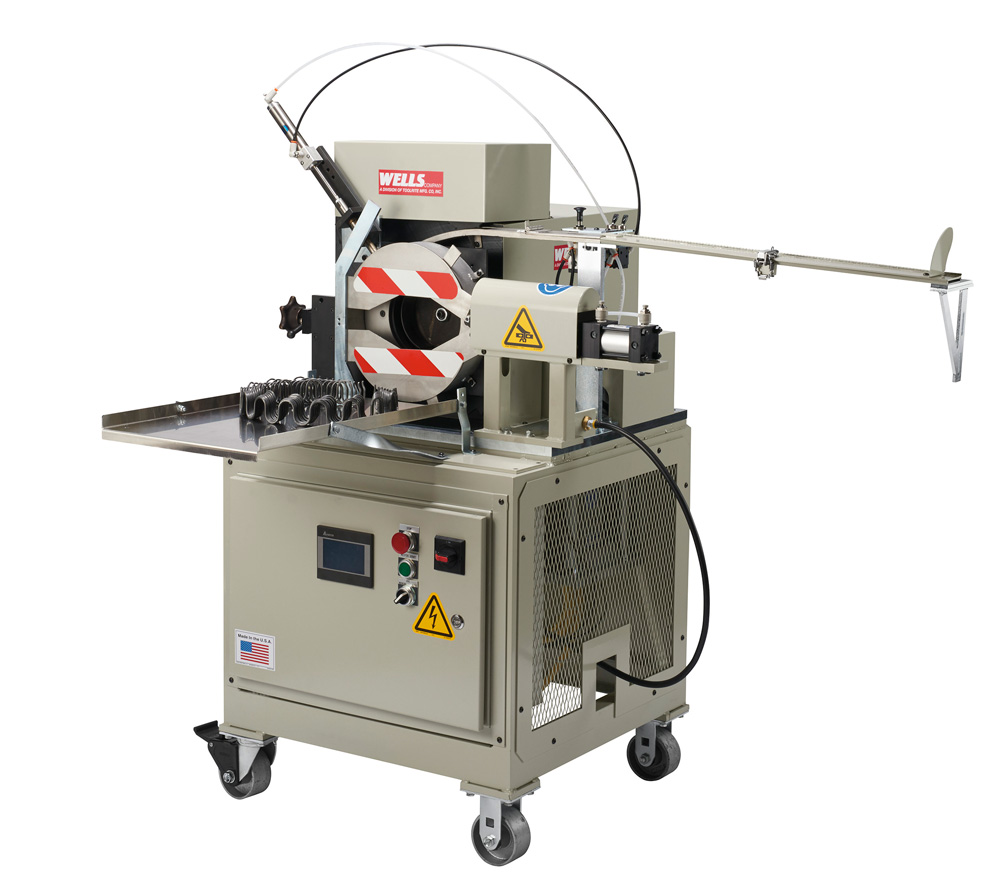

Nester Machine

The Wells’ NE50 Nester is designed to handle both ZZ and XL products and operates through electrical and air feed hookups grounded in the Zig Zag machine. These connections can be modified to work with any wire forming machine through the use a separately purchased interface. No matter what material handling system you currently have, the Nester can feed the output product into it.

Price: Call The Wells Company for a Quote (262)754-1100

allows for non-stop machine operation at maximum speed
enables the Zig Zag machine to operate at optimum speed

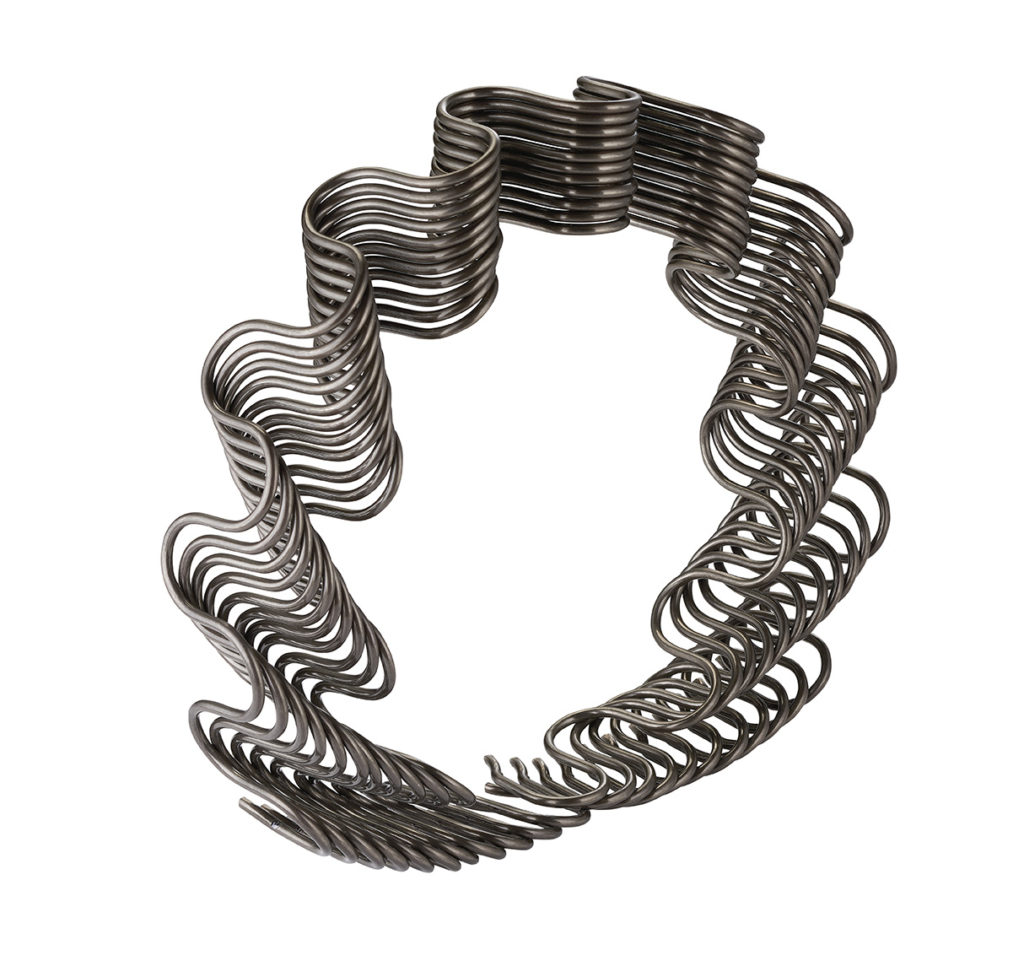

produces uniform bundles for more efficient handling and packaging

*Notes: Arc of product should be more than 210 deg. to hold the bundle
Product bars must be parallel
Depending on customer request, other outside bundle diameters are available.
Depending on your application, there are two different models of nesters available. See below specs.

Description:
Nester for Curved Products – See Model Options Below
Model NE50:
Product Width = Small to Medium Loop / 45 mm. to 55 mm. (1.75″ to 2.1875″)
Model NE76:
Product Width = Super Loop / 70 mm. to 76 mm. (2.75″ to 3″)
Machine Weight:
306 kg. (675 lbs.)
Crated Machine Weight:
508 kg. (1,120 lbs.)
Machine Dimension:
111 cm. x 107 cm. (45″ x 42″)
Equipment Type:
Accumulator
*Outside Bundle Diameter:
ZZ Standard:
22 cm. (8.625″)
XL Standard:
24 cm. (9.5″)
SL Standard:
38 cm. (15″)
Wire Specs:
Both furniture and automotive grades; diameters: 2.3 mm to 4.3 mm (.092″ to .70″)
Color:
Cream
Capacity:
Matches the output of the Zig Zag machine
Spring Length Capacity:
33 cm. to 72 cm. (13″ to 28″)
Power Source:
1.5 Horsepower (Direct Connection to Zig Zag Machine)
Voltage:
380V 3ph 50Hz (440V 60Hz)
Full Load Current:
4 Amp
Largest Motor Full Load Current:
3 Amp
Special Configurations:
Per Customer Request
Air:
80 PSI Air Supply / 007 CBM Min at 62 Bars (Direct Connection to Zig Zag Machine)
Number of Pieces:
1
Limited Warranty:
6 months from the date of installation


Customers often buy this supporting equipment to maximize their efficiency!
Additional Die Sets: We offer a wide variety of die sets and design and build custom options for our customers

Wells Accumulators English Flyer

Wells Accumulators German Flyer

Wells Accumulators Spanish Flyer

Contact Us

Back to Top

Stacker Machine

Our Stacker is specially designed to handle all ZZ, XL, and SL products. As the Zig Zag machine cuts alternating sides, the Stacker piles each of the resulting products into separate rows. Products can then be taken from the Stacker, bundled, and transported to their next destination.

Price: Call The Wells Company for a Quote (262)754-1100

allows for non-stop machine operation at maximum speed
enables the Zig Zag machine to operate at optimum speed
produces uniform bundles for more efficient handling and packaging

*Note: Depending on your application, there are two different models of stackers available. See below specs.

Description:
Stacker for Straight and Arced Product – See Model Options Below
Model SK7:
Product Width = Small to Medium Loop / 45 mm. to 55 mm. (1.75″ to 2.1875″)
Model SK8:
Product Width = Super Loop / 70 mm. to 76 mm. (2.75″ to 3″)
Machine Weight:
247 kg. (545 lbs.)
Crated Machine Weight:
435 kg. (960 lbs.)
Machine Dimension:
222 x 170 cm. (87.5″ x 67″)
Equipment Type:
Accumulator
Wire Specs:
Both furniture and automotive grades; diameters: 2.3 mm to 4.3 mm (.092″ to .70″)
Color:
Cream
Capacity:
Matches the output of the Zig Zag machine
Power Source:
1/6 Horsepower (Direct Connection to Zig Zag Machine)
Voltage:
380V 3ph 50Hz (440V 60Hz)
Full Load Current:
3 Amp
Largest Motor Full Load Current:
0.5 Amp
Special Configurations:
Per Customer Request
Air:
7.4 m 3/h at 6 bar (4.4 cubic ft./min. at 80-85 lbs./sq. in.) / 007 CBM Min at 62 Bars (Direct Connection to Zig Zag Machine)
Number of Pieces:
1
Limited Warranty:
6 months from the date of installation

Customers often buy this supporting equipment to maximize their efficiency!
Additional Die Sets: We offer a wide variety of die sets and design and build custom options for our customers

Wells Accumulators English Flyer

Wells Accumulators German Flyer

Wells Accumulators Spanish Flyer

Contact Us

Back to Top


Roll Accumulator

Our Roll Accumulator is a simple solution to handling up to 30 meters (100 feet) of product. This attachment requires no air or hydraulic hook ups and easily attaches to the Zig Zag machine. If you frequently run smaller jobs, then this may be the easy handling solution that you are looking for.

Model Numbers:
RA12
Machine Weight:
Boxed Machine Weight:
Machine Dimension:
Equipment Type:
Accumulator
Wire Specs:
Both furniture and automotive grades; diameters: 2.3 mm to 4.3 mm (.092″ to .70″)
Color:
Cream
Capacity:
Matches the output of the Zig Zag machine – Not to exceed 30 m (100 ft.) of wire at a time
Power Source:
None
Special Configurations:
Per Customer Request
Number of Pieces:
1
Limited Warranty:
6 months from the date of installation

Customers often buy this supporting equipment to maximize their efficiency!
Additional Die Sets: We offer a wide variety of die sets and design and build custom options for our customers
